Diptronics NDA Series DIP Switches
Diptronics NDA Series DIP Switches are right-angle type switches that are available in red, black, and blue color options. These switches feature gold contact for high reliability that offer a 25mA and 24VDC contact rating. The DIP switches offer 50mΩ maximum contact resistance and 500VAC per minute dielectric strength. These switches are stored and operated at -40°C to 85°C temperature range. The DIP switches are halogen-free and RoHS compliant. Typical applications include industrial control, a variety of common functions, computers, and peripherals.
Features
- Side actuation
- Gold contact for high reliability
- Available in red, black, and blue color options
- Halogen-free
- RoHS compliant
Specifications
- 25mA and 24VDC contact rating
- 50mΩ maximum contact resistance
- 100MΩ minimum insulation resistance @500VDC
- 500VAC per minute dielectric strength
- 1000gf maximum operating force
- 2mm travel
- 2000cycles operating life
- -40°C to 85°C operating and storage temperature range
Applications
- Industrial control
- Computer and peripherals
- Variety of common functions

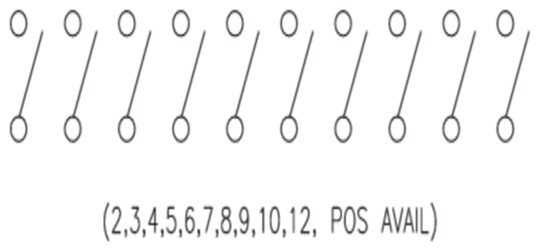

Circuit Diagram

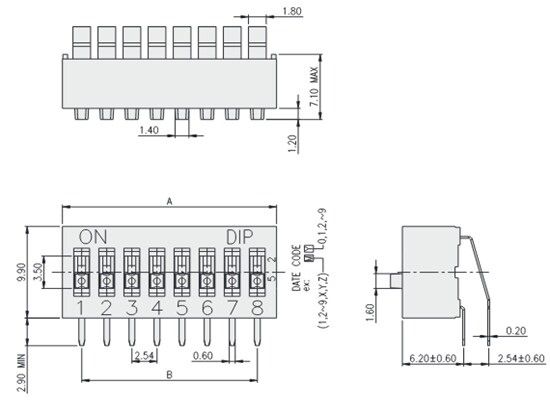

Mechanical Drawing
